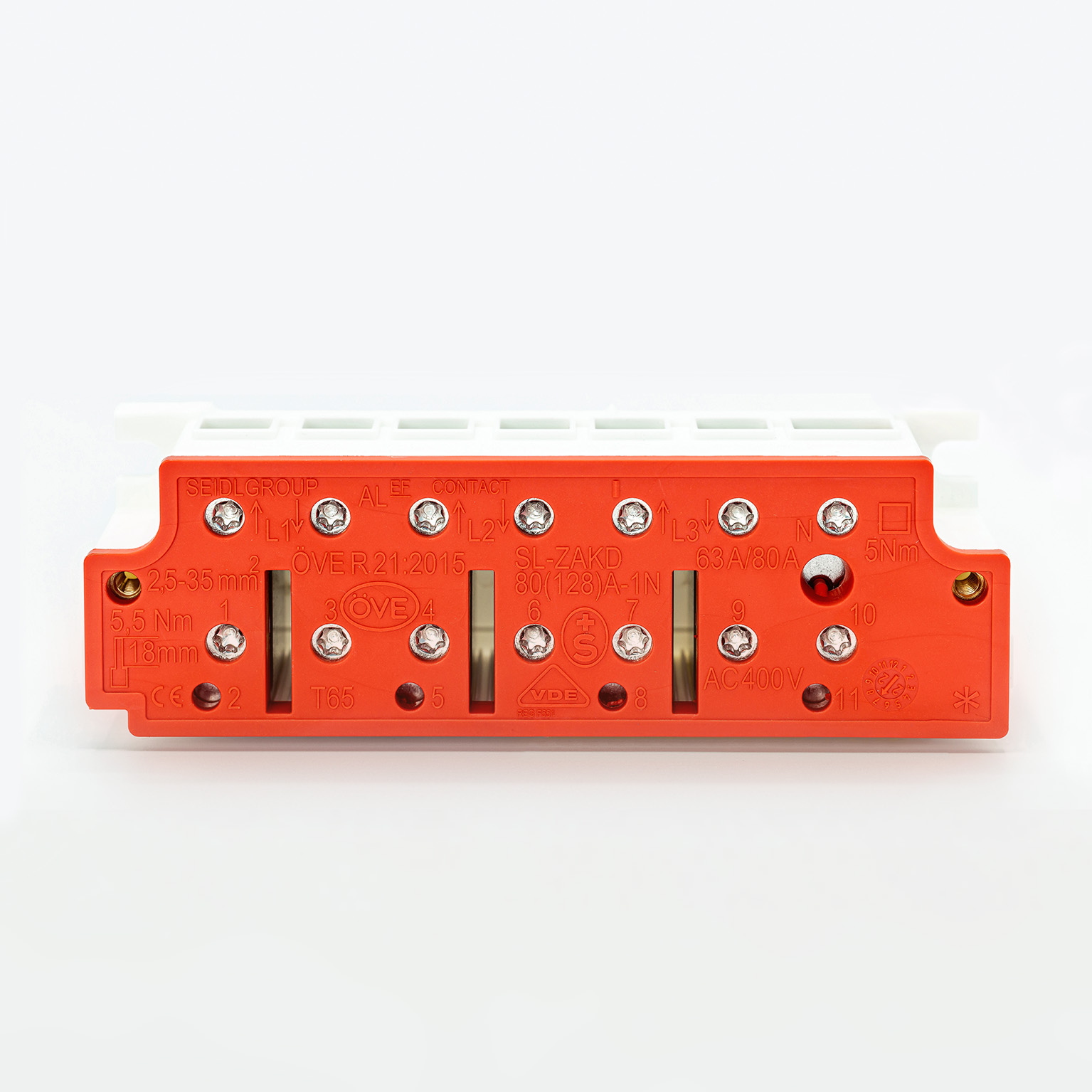

SL-ZAKD 80 (128)A-1N with TRE-A

Meter connection terminal

SL-ZAKD 80 (128)A-1N with TRE-A

Article number 1006302
Smart meter connection clamp
Continuous current 80A
Overload current 2h 128A
Version 1N with tariff connection

EAN 9120075472579

Additional information

Colour

White/red

Country

AT

Depth of installed product

35 mm

Height of installed product

44 mm

Nominal current

80A

Test overload current

128A/2h

Packaging unit

64 pcs.

Number of poles

3P+1N

Total power loss under nominal current

2,53 W

Weight of installed product

0,25 kg

Width of installed product

135 mm

Clamp cross-section

2,5-35 mm²

Technical features

Packaging unit: 64 pcs.
Nominal current: 80A
Test overload current: 128A/2h
Total power loss under nominal current: 2,53 W
Number of poles: 3P+1N
Height of installed product: 44 mm
Width of installed product: 135 mm
Depth of installed product: 35 mm
Weight of installed product: 0,25 kg
Clamp cross-section: 2,5-35 mm²
Colour: White/red
Country: AT
